Product details
This 90mm Pocket Door Kit is suitable for:
- 35–44mm thick doors
- Up to 60 KG per door
- Fits 89mm CLS studwork or 92mm steel studwork perfectly (for other sizes see stud tab above)
- 12.5mm standard plasterboard
Double doors: Just order two singles (joining brackets included).
This kit includes:
- All required galvanized steel components and the track
- Brackets for stud fitting and plasterboard positioning
- Adjustable pocket entrance floor guide
- Runners with sealed carbon steel bearings
- Spring steel door brake (soft close option available)
- Lifetime warranty
Door Jambs / Linings
Order separtely here for 115 or 125 mm finished wall thickness.
You will need to supply:
- Door panel (35 or 44mm thick, max 60kg)
- Studwork
- Plasterboard
Delivery:
- Next working day for UK mainland if ordered before 1:30 PM
- 3–5 days for Highlands, Channel Islands, and Northern Ireland
- Call for delivery to EIRE and remote areas (extra charges apply)
Important delivery information: Due to high demand and staff shortages, there may be delays. We appreciate your understanding.
Technical Information
Choosing Your Rocket Pocket Door Kit
The Rocket Pocket kit is available in 6 sizes tailored for standard UK door sizes. Max door weight: 60kg. For double doors, buy two singles (brackets included).

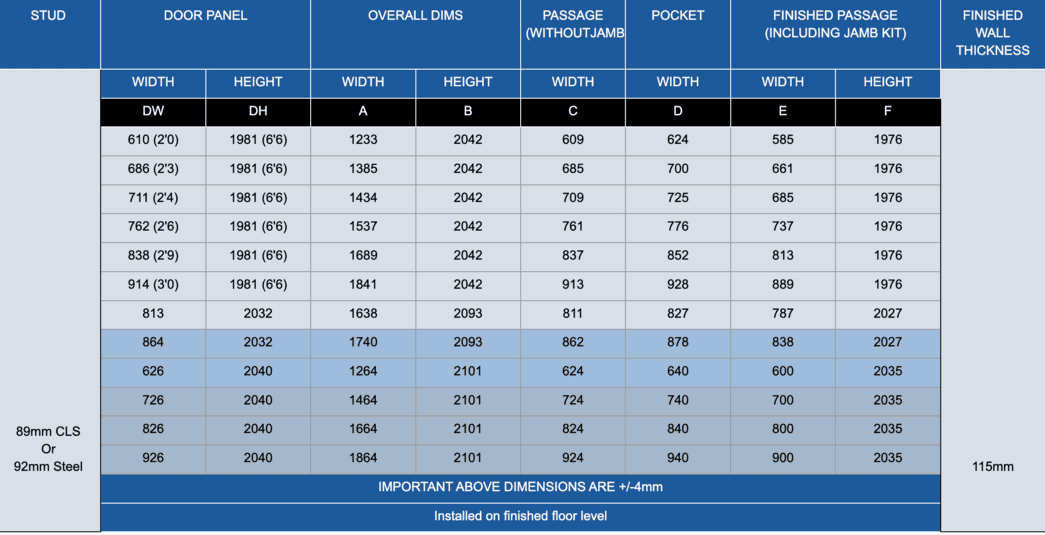

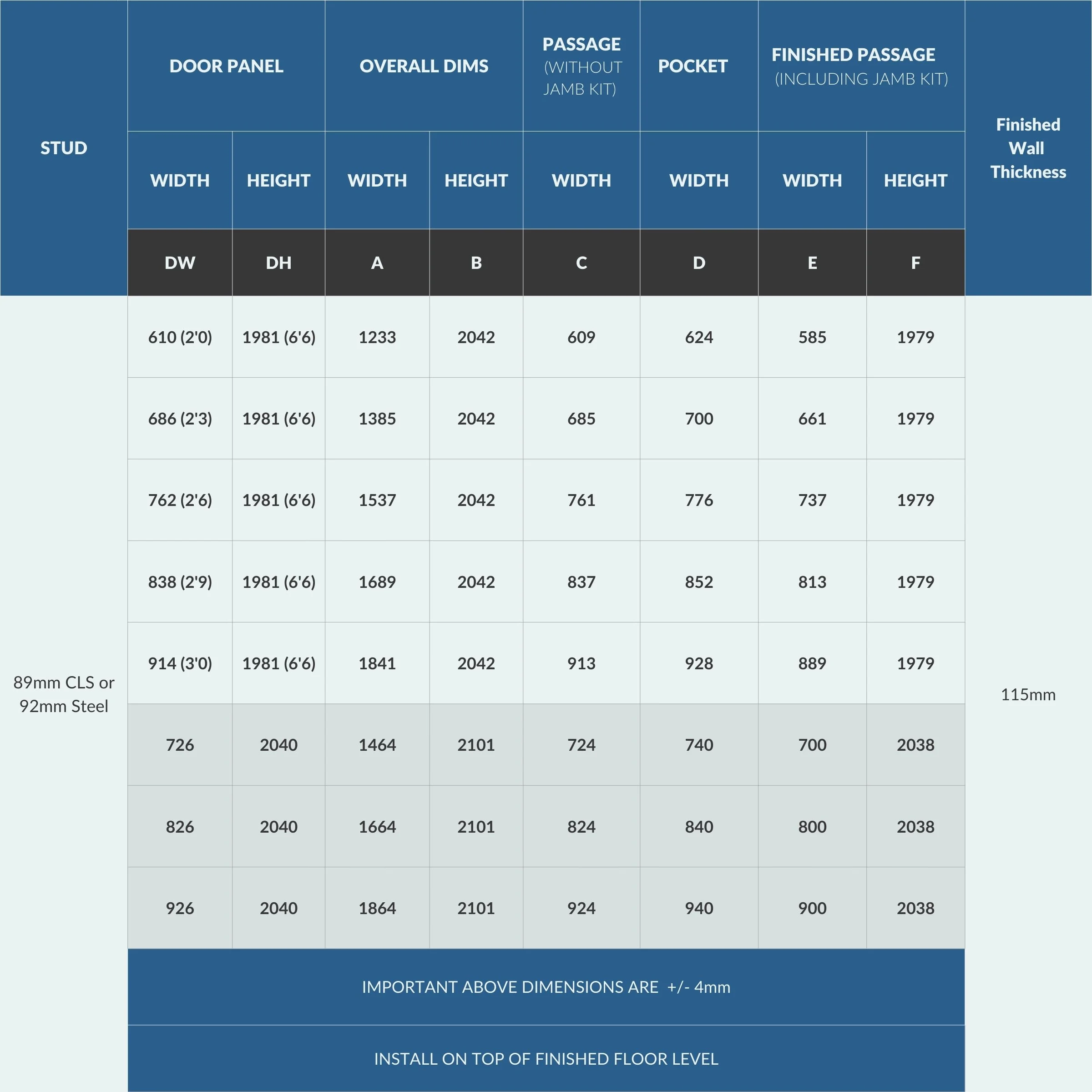

Choose the right door size from the chart or measure your available space and match accordingly.
What’s Included in the Kit

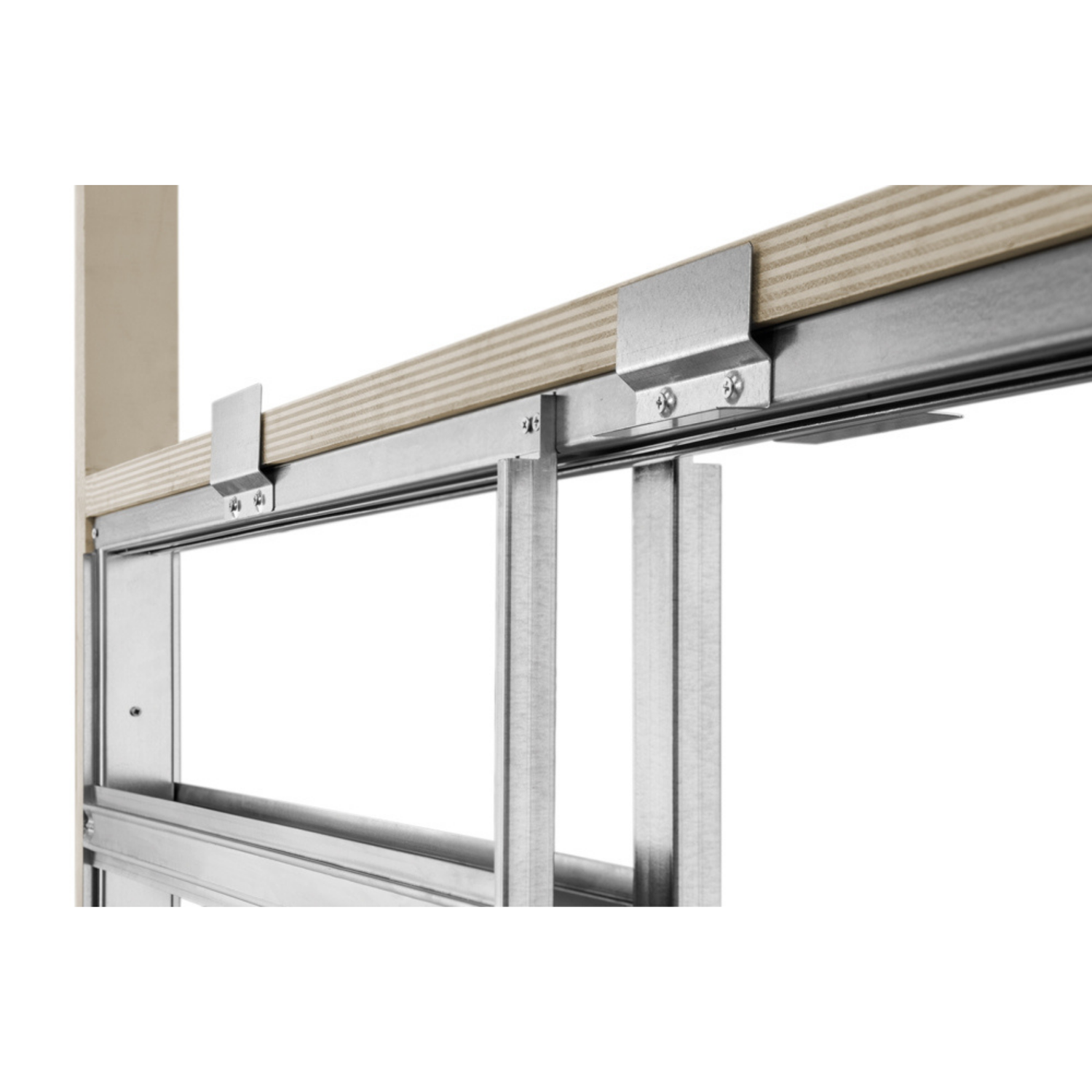

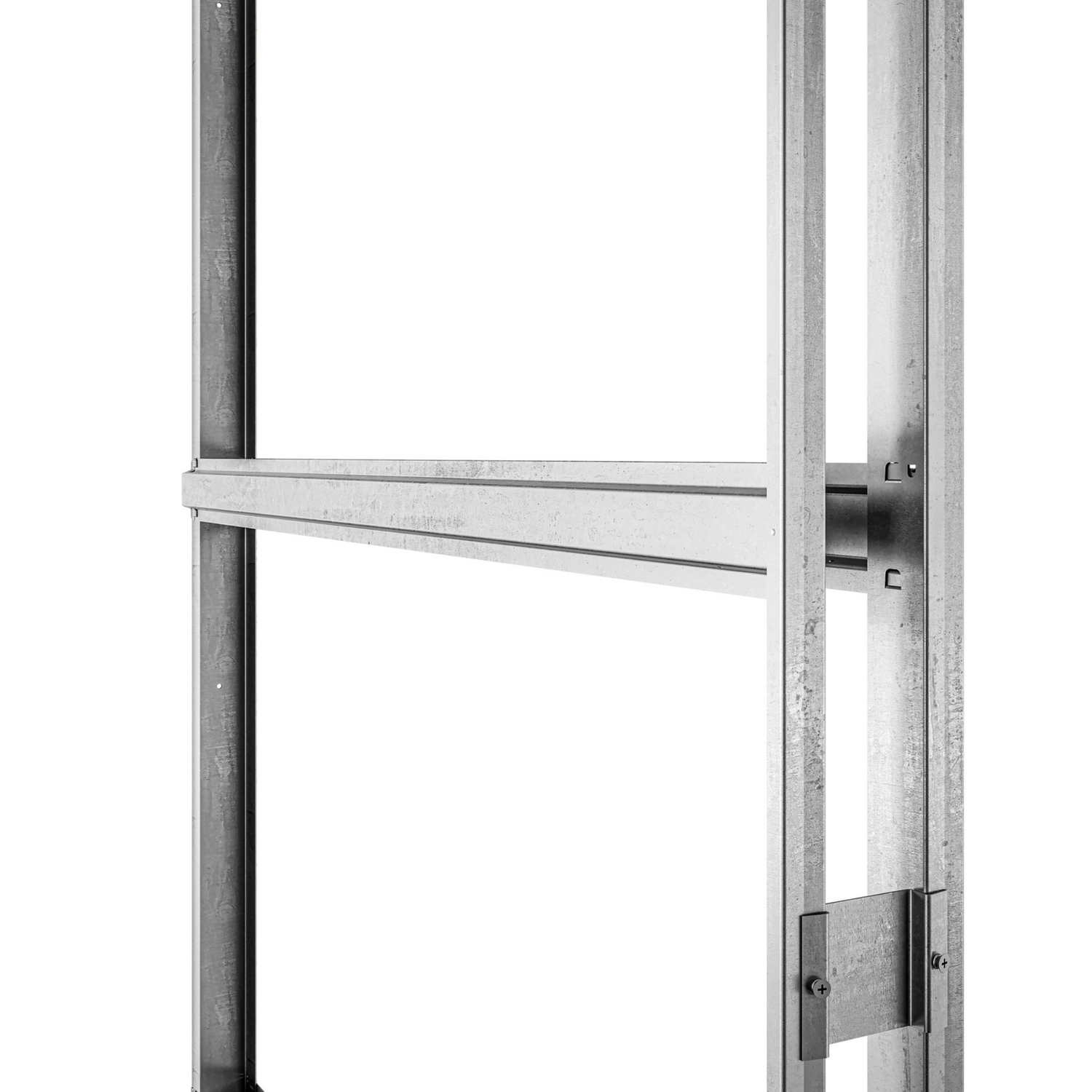

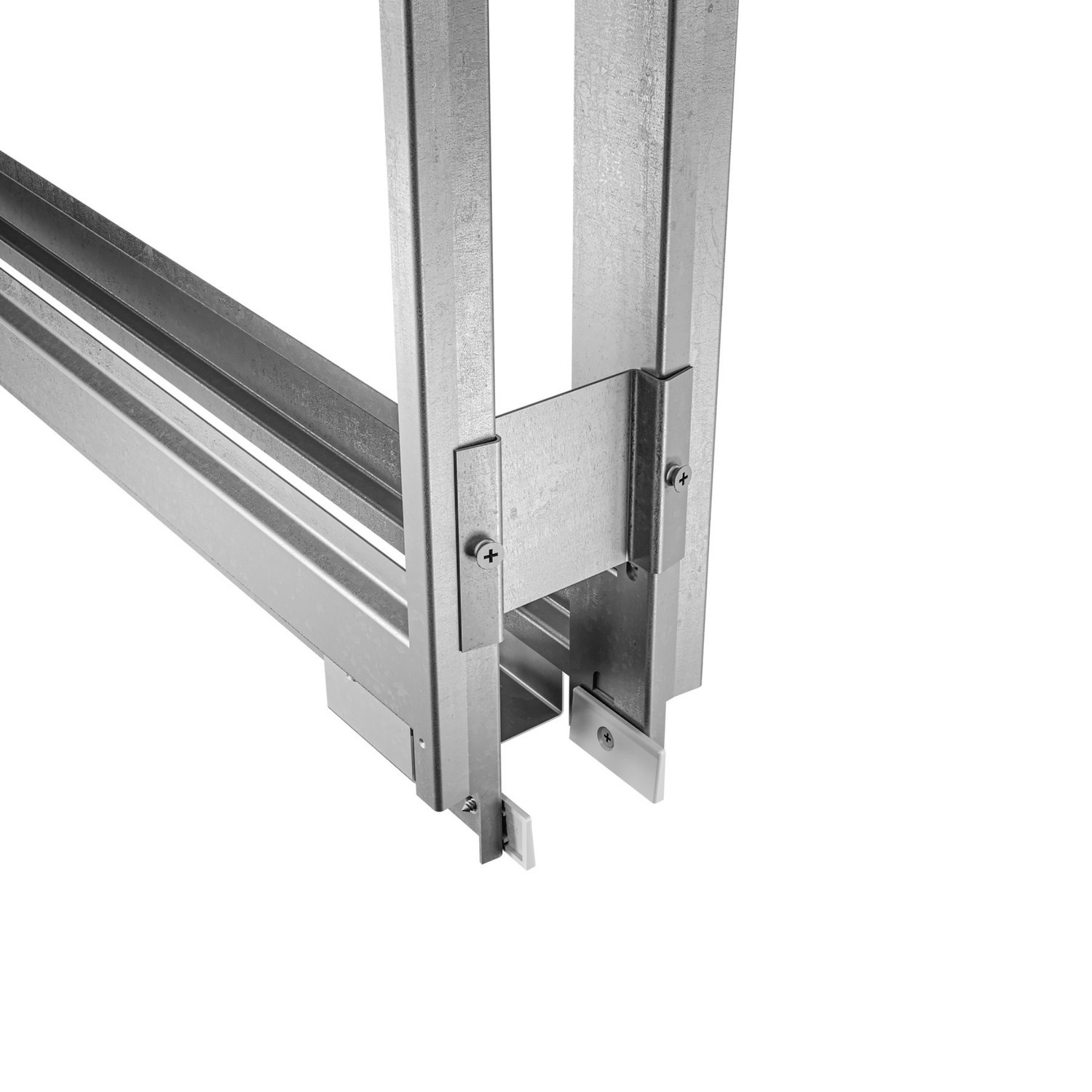

- A complete galvanised steel pocket and integral running track, both corrosion resistant.
- A set of runners each having two ‘sealed for life’ carbon steel bearing wheel that are contained within the track and cannot ‘jump’ off the rails.
- A spring steel braking system is included as standard and brakes the door closure under normal usage.
- Door brackets to attach the door to the runners, these have the possibility to adjust up to 7mm so your door can be at the perfect height (remember to always install your frame at finished floor level)
- Included also are 19mm plasterboard screws for attaching your plasterboard to the framework. These are important as they are just the right size to attach the board and not protrude too much with the risk of scratching your door.
- A lifetime warranty against manufacturing and material defects.
So that’s it, everything you need to make a door of your choice into a pocket door. You need only supply the door, plasterboard and any wood linings you choose.

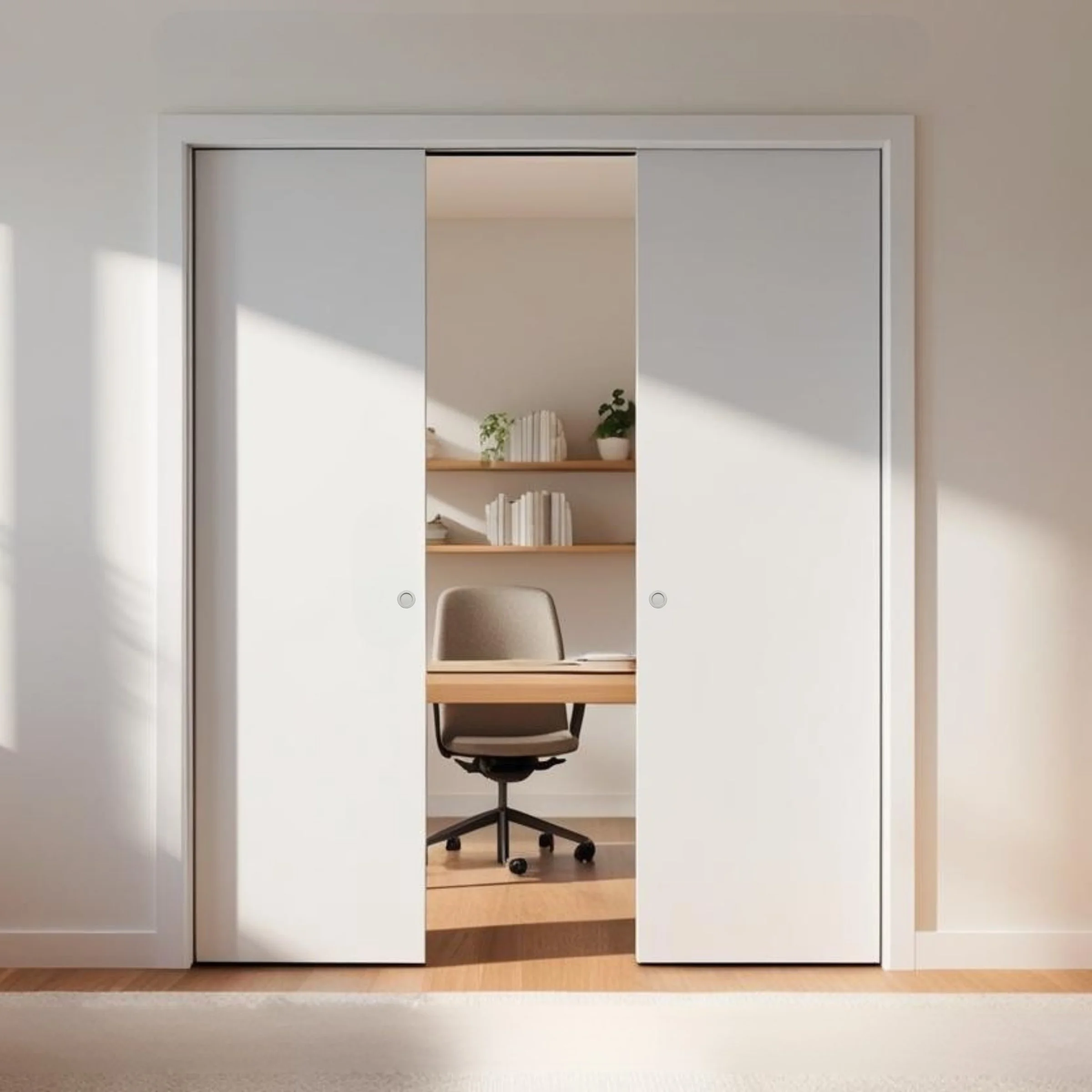

Double Rocket Pocket Doors
Each kit includes a joining bracket—no extra cost. Just align the two singles perfectly for smooth operation.
Installation
Resources for Installing Your Pocket Door Kit
Take a look at this Rocket Pocket Door video clip below or download our installation instructions to help you with installing your pocket door. The instructions include a list of tools you will require. View the video or scroll down to see how you create the linings.
DOWNLOAD 90MM FRAME INSTALLATION INSTRUCTIONS
DOWNLOAD JAMBS FOR SINGLE DOOR
DOWNLOAD JAMBS FOR DOUBLE DOOR
“The builder who put it together said it was straightforward to do. He’s not done something like this before and found the instructions and video quite helpful!” – Feedback from a happy customer.
Additional information
| Size | 1981 x 610, 1981 x 686, 1981 x 762, 1981 x 838, 1981 x 914, 2040 x 626, 2040 x 726, 2040 x 826, 2040 x 926 |
|---|---|
| Brand | Rocket Door Frames |
