Product details
This kit is suitable for:
- 44mm Doors
- Up to 60KG Doors
- 63mm stud (see dimension table)
- 70mm stud (see dimension table)
- 95mm stud (see dimension table)
This kits includes:
- A full FD30 appoved jamb kit
- Intumescent pack (Can be painted with fire resistant paint)
- All the galvanised steel uprights and horizontals required to build the pocket, plus the track
- The brackets to fit the frame to the stud that double as plasterboard supports
- 44mm Floor Guide
- Runners with carbon steel ‘sealed for life’ bearings
- A spring steel bar ( soft close option available )
- A lifetime warranty
What do I need to supply?
- 44mm FD30 door panel
- Studwork to suit
- Plasterboard (See dimensions table)
Delivery:
Next working day if ordered before 1.30pm for UK mainland (Please note, this is not a guaranteed service and on the odd occasion can take up to two working days).
1-3 Days for Highlands, Channel Islands and Northern Ireland.
Please call the office for delivery to EIRE, Northern Ireland, Channel Islands and the Scottish highlands, as this will incur an extra delivery cost.
IMPORTANT DELIVERY INFORMATION
Whilst we are doing all we can to meet our normal delivery lead-times, due to the current unprecedented circumstances, there may be unavoidable exceptions.
Please note: Couriers are currently experiencing delays to their services due to significant increase in volume and reduced staff levels. We’d like to ask all customers to be understanding that there may be some delays with deliveries during these unprecedented times. We’re all doing our best to keep things moving, and will do everything we can to help ensure you get the products you need as soon as possible.
Technical Information
CHOOSING YOUR ROCKET POCKET DOOR KIT
The Rocket Pocket kit comes in 9 specific sizes, each made for a standard UK door size so you can choose the door you want and it fits first time, every time!!
Max door weight is 60kg which covers most standard doors. For a double door just buy two singles, they come with a joining bracket completely free of charge with each unit.

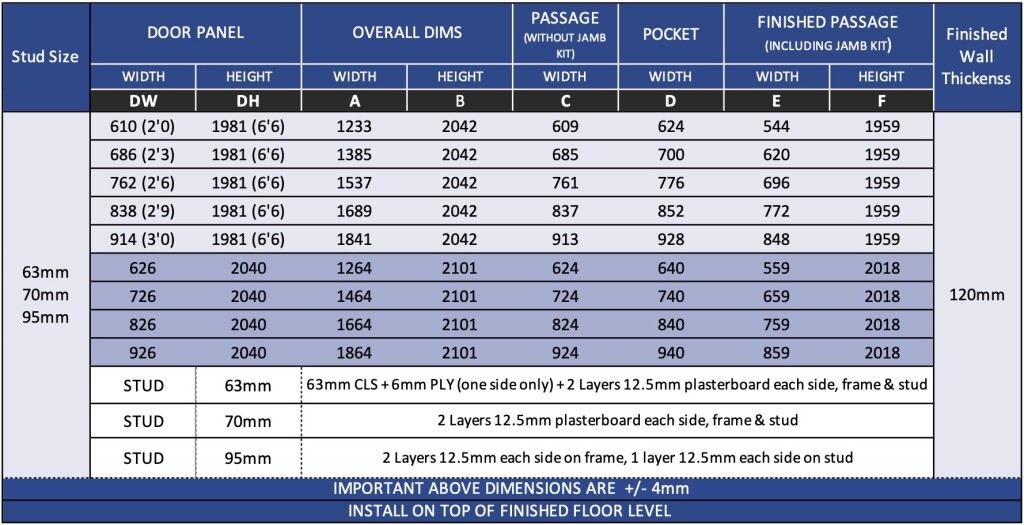

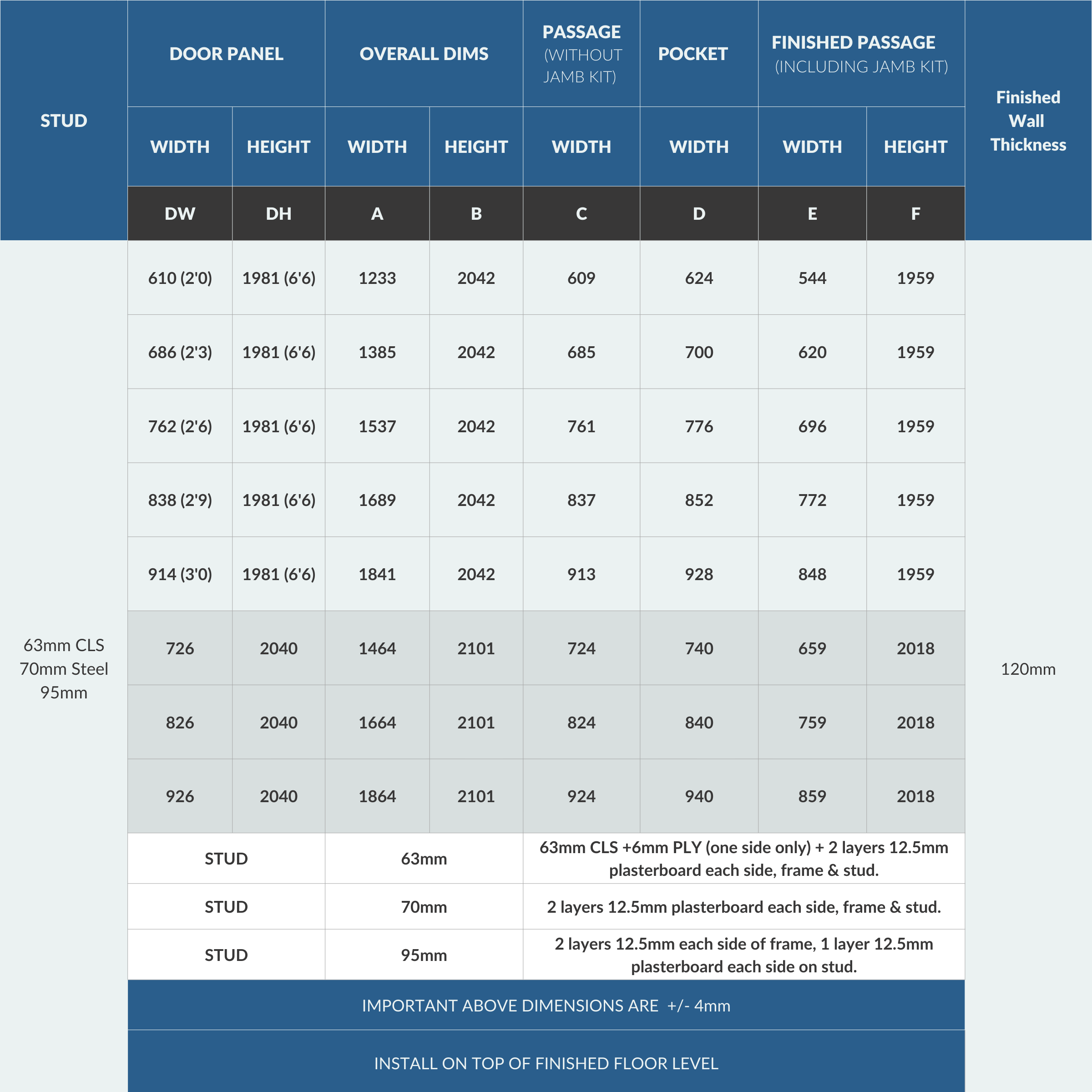

So you can choose you door panel size from the table below or if the overall space is the more important factor then find the nearest and you will see what door size you need to purchase. It’s really simple!
WHAT DO YOU GET WITH THE KIT
- A complete galvanised steel pocket and integral running track, both corrosion resistant.
- A set of runners each having two ‘sealed for life’ carbon steel bearing wheel that are contained within the track and cannot ‘jump’ off the rails.
- A spring steel braking system is included as standard and brakes the door closure under normal usage.
- Door brackets to attach the door to the runners, these have the possibility to adjust up to 7mm so your door can be at the perfect height (remember to always install your frame at finished floor level)
- Included also are 19mm plasterboard screws for attaching your plasterboard to the framework. These are important as they are just the right size to attach the board and not protrude too much with the risk of scratching your door.
- A full 12 year warranty against manufacturing and material defects.
So that’s it, everything you need to make a door of your choice into a pocket door. You need only supply the door, plasterboard and any wood linings you choose.
DOUBLE ROCKET POCKET DOORS
Its so easy, each single Rocket Pocket system has an adaptable bracket that ben be used to connect two singles and make them a double so there is no extra cost for a joining kit. When Installing a double system remember to ensure both systems are perfectly in line and plumb and then the doors will meet exactly in the middle.
Installation
Resources to help you with installing your sliding pocket door kit
Take a look at this Rocket Pocket Door video clip below or download our installation instructions to help you with installing your pocket door. The instructions include a list of tools you will require. View the video or scroll down to see how you create the linings.
INSTALLATION INSTRUCTIONS FOR 70MM POCEKT
DOWNLOAD JAMBS FOR 95mm FINISHED WALL THICKNESS
“The builder who put it together said it was straightforward to do. He’s not done something like this before, and found the instructions and video quite helpful!” – feedback from a happy customer.
Jamb and liners details go here…
Additional information
| Size | 1981 x 610, 1981 x 686, 1981 x 762, 1981 x 838, 1981 x 914, 2040 x 626, 2040 x 726, 2040 x 826, 2040 x 926 |
|---|---|
| Brand | Rocket Door Frames |
